CHD-FL-1 Aluminum Alloy Door Frame – Elite Commercial Vertical

Aluminum Alloy Door Frame|Fan Cooling|2-10℃ Wide Temperature Range|Commercial Vertical Single-Door Refrigerator – Keeping Fresh Every Day.

Any questions or concerns?

Regarding product or factory information

Lianzun Refrigerator Scene Display - Vertical Refrigerator (6)

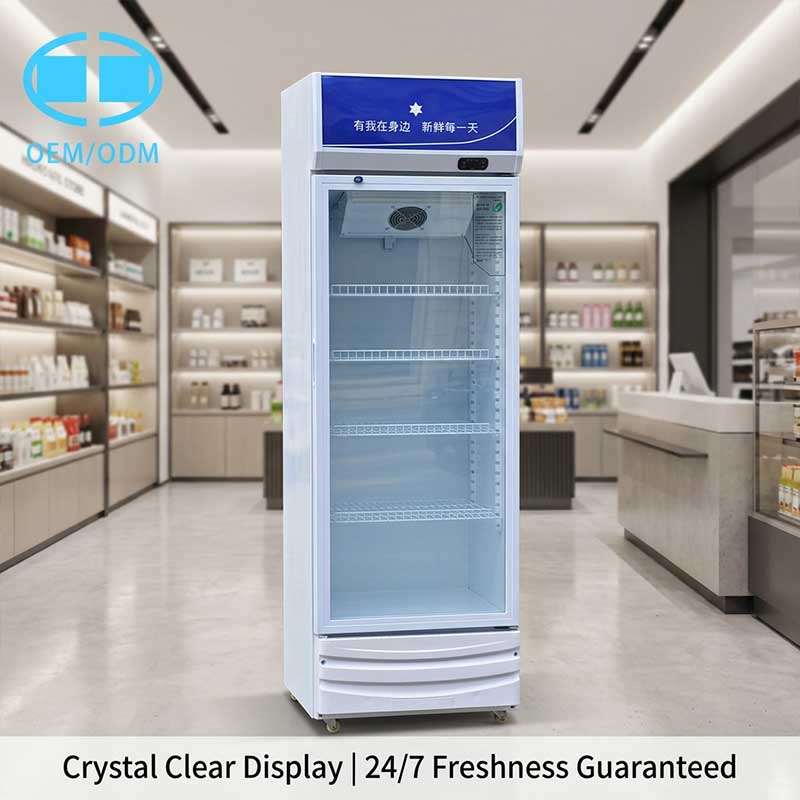

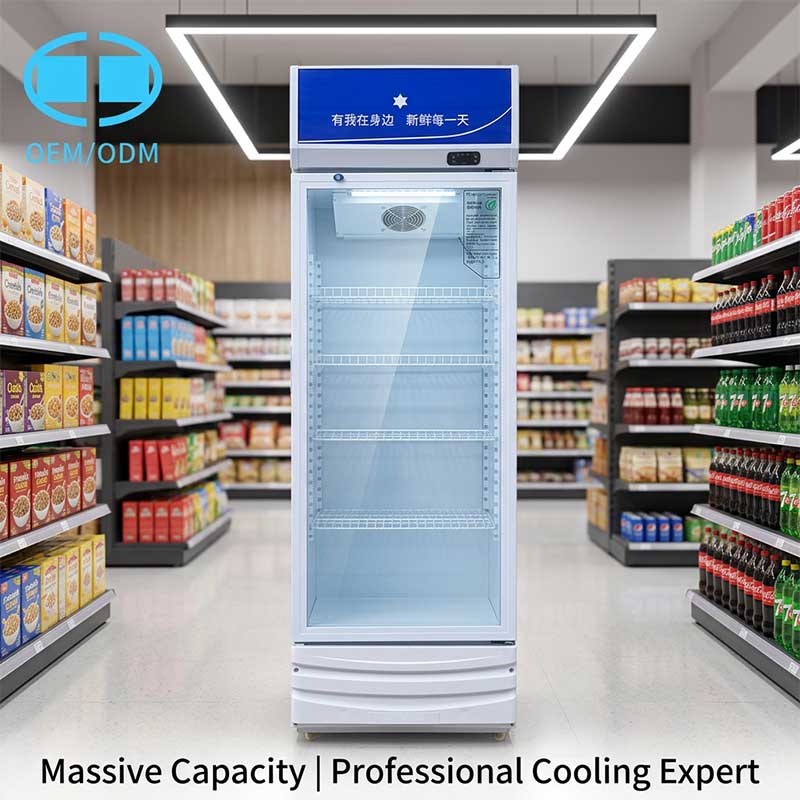

CHD-FL-1 Commercial Vertical Single-Door Fan-Cooled Refrigerator

Keeping Fresh Every Day – By Your Side.

Product Highlights

  • Aluminum Alloy Door Frame – Strong, corrosion-resistant, and easy to clean. Built for demanding commercial environments.

  • Fan Cooling (No-Frost) – Forced air circulation ensures uniform temperature throughout. No manual defrosting. Prevents food from drying out or sticking together.

  • 2-10℃ Wide Temperature Range – Precise temperature control for beverages, dairy, fruits, cakes, deli items, and more.

  • Single-Door Design – Compact footprint, perfect for counter-side or aisle placement.

  • R290a Refrigerant – Energy-efficient and environmentally friendly.

  • 180W Powerful Cooling – Rapid temperature pull-down. Recovers quickly even with frequent door openings.

Specifications

Parameter Value
Model CHD-FL-1
Dimensions (W×D×H) 600 × 550 × 1950 mm
Power 180W
Cooling Type Fan Cooling (No-Frost)
Refrigerant R290a
Temperature Range 2 – 10 ℃
Door Frame Material Aluminum Alloy
Door Type Single Door

Applications

  • Convenience stores & small supermarkets

  • Coffee shops, bubble tea shops & bakeries

  • Fast-food restaurants & cafeteria kitchens

  • Office pantries & dormitory canteens

Why Choose CHD-FL-1?

This is more than just a refrigerator. The aluminum alloy door frame paired with a 1950mm height maximizes display capacity while minimizing floor space. Fan cooling technology ensures consistent temperature on every shelf – no more warm drinks on top or frozen vegetables at the bottom. The 2-10℃ wide range allows you to store everything in one unit – from 2℃ fresh milk and juice to 10℃ wine and energy drinks.

Keeping Fresh Every Day – By Your Side.

Get Factory Price → Contact Us Today

其他信息

重量 41 公斤
尺寸 600 × 550 × 1950 厘米
Certification

Compressor brand

volume

Voltage/Frequency

Refrigeration temperature range

Cooling type

Power rating

Refrigerant type

Commercial Refrigerator FAQ | Troubleshooting & Solutions

❄️ Commercial Freezer & Refrigerator FAQ

Common issues, expert troubleshooting, and practical solutions — keep your equipment running at peak performance.

🔧
Unit not cooling / poor temperature performance

Possible causes & solutions:

  • Power & connection – Verify plug is secure and circuit breaker is ON. Check if interior light works.
  • Condenser coils dirty – Clean coils (rear or bottom) every 3–6 months using a soft brush or vacuum.
  • Thermostat setting – Ensure setpoint is correct (e.g., 2~10℃ for chillers / -18℃ for freezers).
  • Overloaded unit – Avoid blocking air vents; leave space between items for airflow.
PRO TIP: Allow 24h after restocking for temperature to stabilize.
💧
Excessive frost or ice buildup

Why it happens & how to fix:

  • Door left open or door seal damaged – Inspect gasket for cracks/warping. Clean with warm water and test seal with paper sheet.
  • Frequent door openings – Train staff to minimise opening time, especially in humid conditions.
  • Defrost system failure – For fan‑cooled units, check defrost timer/heater. Manual defrost may be needed.
  • Improper temperature setting – Set to recommended level; too low increases frost formation.
⚠️ For heavy ice: turn off unit, remove products and allow natural thaw, then clean interior.
🔊
Unusual noise (loud hum, rattling, clicking)

Diagnose and resolve:

  • Leveling & contact – Ensure unit stands on even floor; adjust levelling feet. Avoid contact with walls or cabinets.
  • Loose components or fan blades – Check evaporator/condenser fan for debris or bent blades. Tighten mounting screws.
  • Compressor vibration – Verify compressor grommets are intact. Persistent heavy noise might indicate compressor wear.
  • Clicking sound – Could be start relay or overload protector. Contact service if repetitive clicking continues.
🎧 Normal sounds: refrigerant flow (slight bubbling) and occasional compressor hum are typical.
💨
Unit runs constantly / high energy consumption

Energy efficiency fixes:

  • Condenser coil maintenance – Dusty coils force compressor to work longer. Clean coils thoroughly.
  • Poor door sealing – Replace worn gasket; perform a dollar bill test (should not slide out easily).
  • Ambient temperature too high – Place unit away from heat sources (ovens, direct sunlight). Ensure adequate ventilation space.
  • Overstocking warm items – Cool products before placing inside. Allow airflow around the thermostat sensor.
📉 Save up to 15% energy by cleaning condenser coils monthly in heavy-use areas.
💦
Water leaking inside or on the floor

Stop water accumulation:

  • Clogged defrost drain line – Clean drain pan and use a pipe cleaner or hot water to flush the drain tube.
  • Door not closing properly – Adjust door alignment and clean gasket to avoid condensation overflow.
  • Frequent door opening in humidity – Install air curtains or reduce opening time; check that door closes tightly.
  • Cracked drain pan or misaligned tubing – Inspect pan for damage; replace if necessary.
🧼 Regularly clear drain hole with mild soap solution to prevent algae buildup.
🌡️
Temperature is inconsistent (warm spots or freezing food)

Stabilize internal climate:

  • Blocked air vents – Do not overpack. Rearrange products to allow even cold air circulation (especially in fan‑cooled units).
  • Faulty door gasket – Warm air infiltration creates zones. Replace gasket if cracked or brittle.
  • Sensor or thermostat malfunction – Test with external thermometer. Calibrate or replace sensor if deviation exceeds ±3°C.
  • Direct cooling units (static) – Avoid placing temperature-sensitive items directly against evaporator plate.
📏 Use a digital min/max thermometer to monitor overnight performance.
🧊
Ice maker / display not working (optional feature)

Troubleshoot ice production and lighting:

  • Check water supply line (ice maker models) – Ensure valve is open and line is not frozen. Replace filter if blocked.
  • LED interior light off – Check bulb or LED driver; simple replacement often solves. Ensure door switch is functional.
  • Digital display error code – Refer to manual. Power cycle (unplug 3 min) may reset temporary glitches.
  • Temperature too low for ice maker – Adjust freezer section temp to -12°C ~ -15°C for optimal ice production.
🔌 Keep spare lamps and door switches for quick service replacement.
⚙️
Compressor runs but no cooling / hot to touch

Critical checks for refrigeration circuit:

  • Refrigerant leak (R290/R600a systems) – If pipes have frost only at entry, suspect leak. Call certified technician for repair.
  • Start relay or overload failure – Intermittent cooling? Test relay with multimeter; replacement is affordable.
  • Condenser fan not running – Fan motor failure leads to compressor overheating. Replace fan motor immediately.
  • Blocked capillary tube – Usually requires professional service to clear or replace.
🚨 Never attempt to repair refrigerant circuit yourself — always use EPA/qualified technician.
